SPECIFICATIONS

Applicable area: Asia, Europe, Africa and North America (120-120VAC drivers)

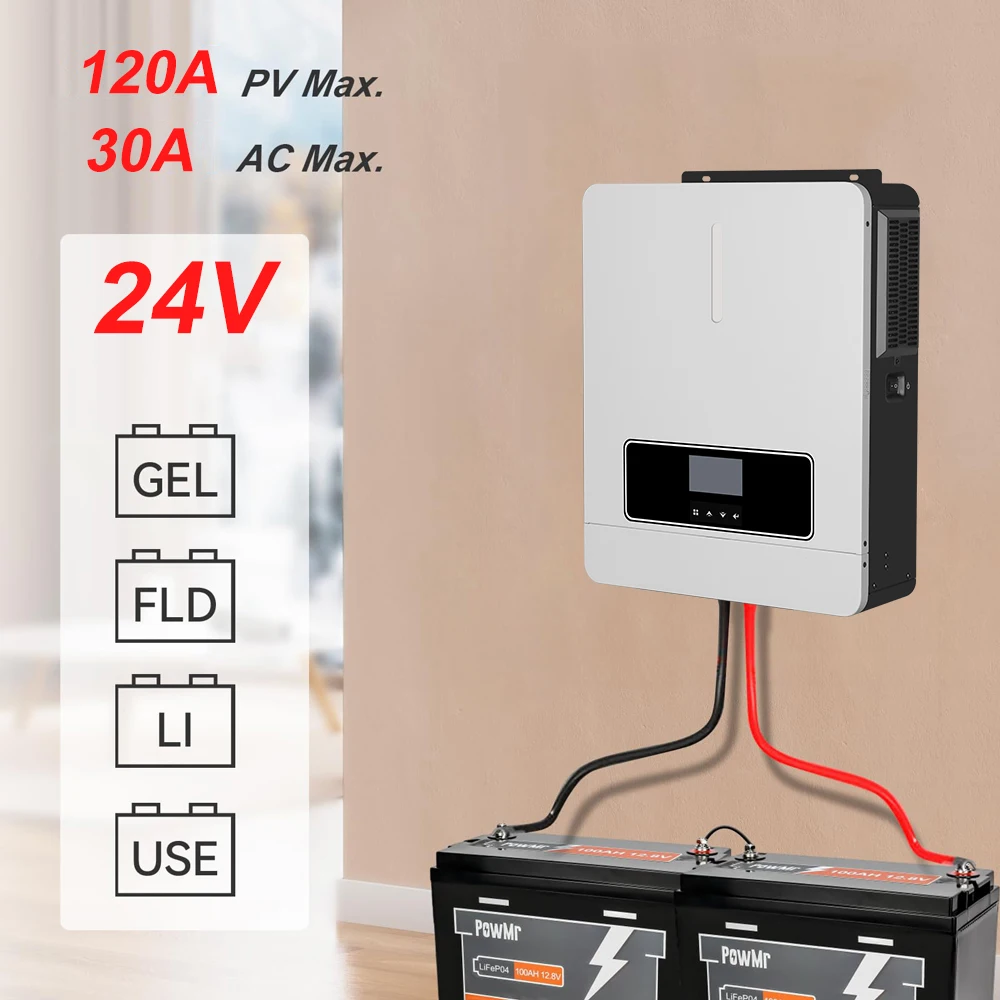

Battery type: Lifepo4, Lithium, Flooded, Gel, Lead-acid Batteries

Battery voltage: 24VDC

Brand Name: NONE

Certification: CE

Equipment: Factory equipment, commercial load, industrial machinery

Feature: Dual input and output

High-concerned chemical: None

Is Smart Device: Yes

Load type: Household appliances, farm tools, farm tools

Maximum PV input power: 4200W

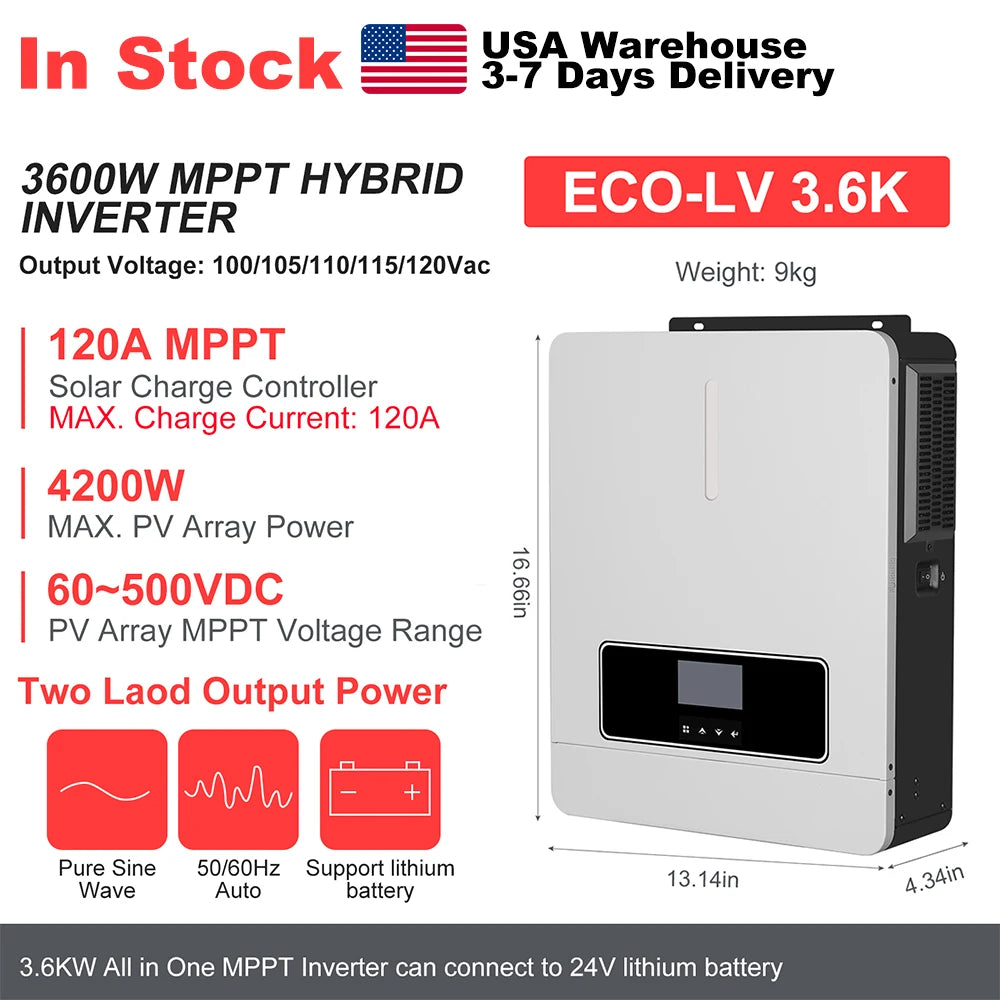

Model Number: ECO-LV 3.6K

Origin: Mainland China

Output Current: MPPT 120A

Output Frequency: 50HZ/60HZ

Output Type: SINGLE

Output voltage range: 100/105/110/115/120VAC

PV array MPPT voltage range: 60~500VDC

Product: hybrid solar inverter

Rated output power: 3.6KVA/3.6KW

Shipping: Within 3-7 days, the package arrive.

Size: 423x334x110 mm

Weight: 9KG

Working efficiency: >95%

is_customized: Yes

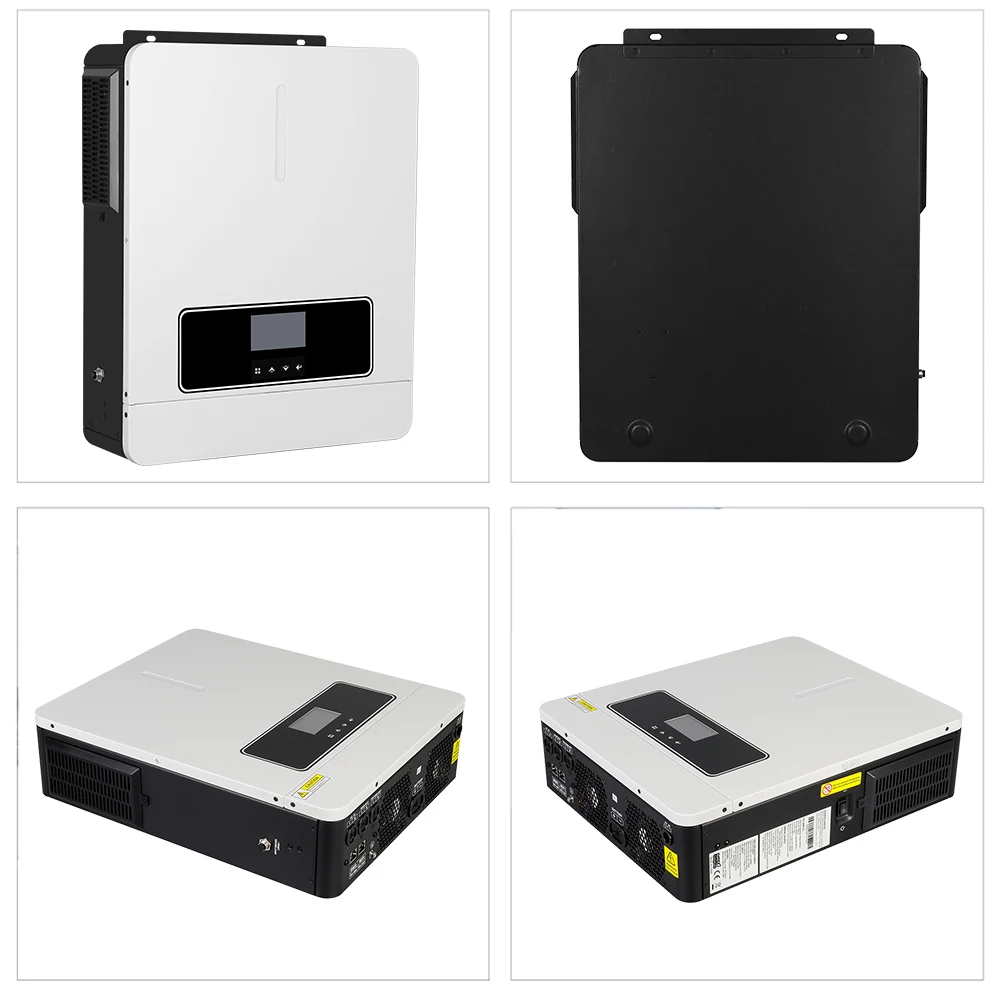

3600W Hybrid Solar Inverter 24V DC to 110V AC Pure Sine Wave With 120A MPPT Charge Controller PV 60-500V Solar & Generator Input

Overview:

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Feature:

1.Pure sine wave inverter.

2.Dual AC inputs and dual AC outputs.

3.Configurable input voltage range for home appliances and personal computers via LCD setting.

4.Configurable battery charging current based on applications via LCD setting.

5.Configurable AC/Solar Charger priority via LCD setting.

6.Compatible with mains voltage or generator power.

7.Auto restart while AC is recovering.

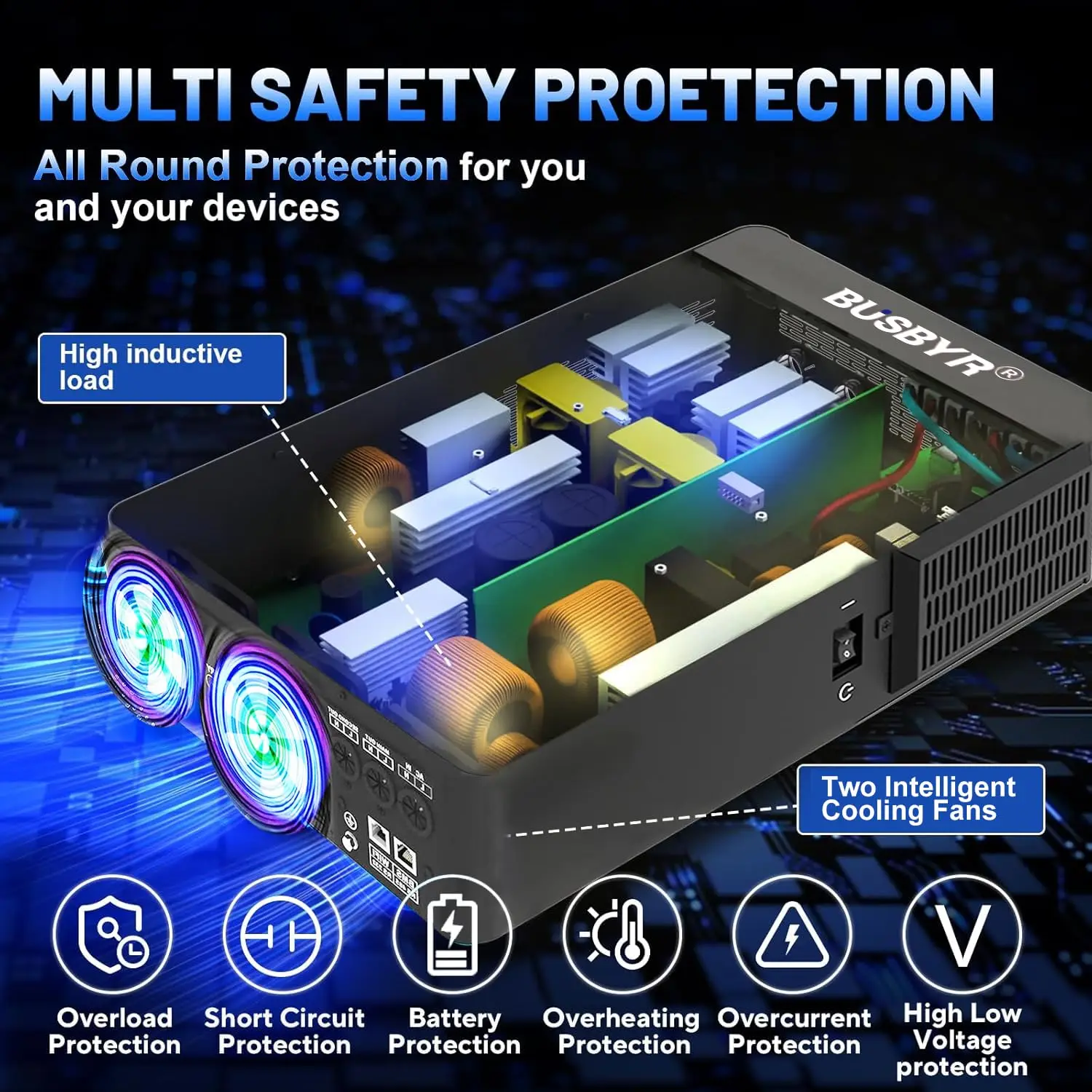

8.Overload/ Over temperature/ short circuit protection.

9.Smart battery charger design for optimized battery performance.

10.Cold start function.

11.Optional WiFi with remote monitoring APP.

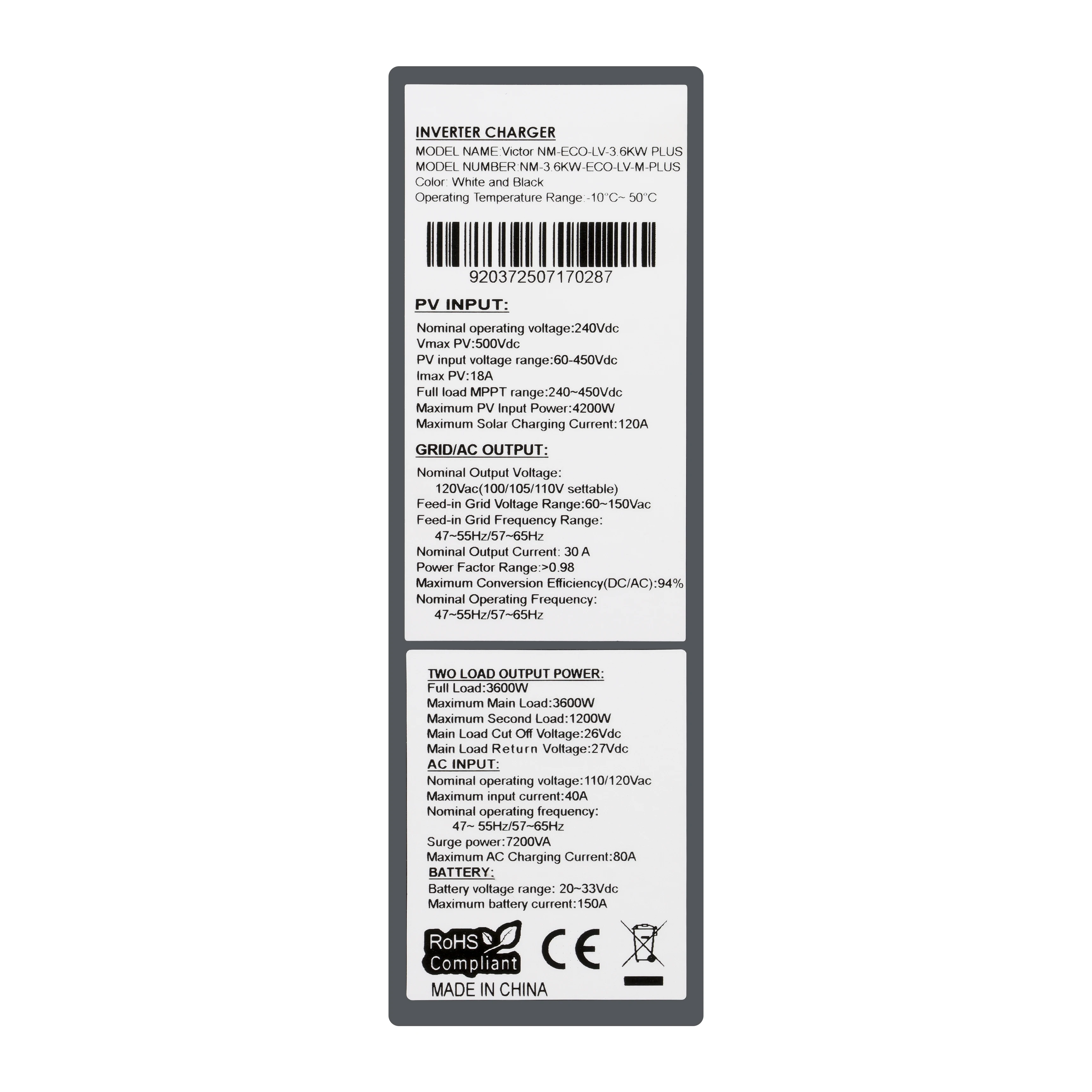

Specification:

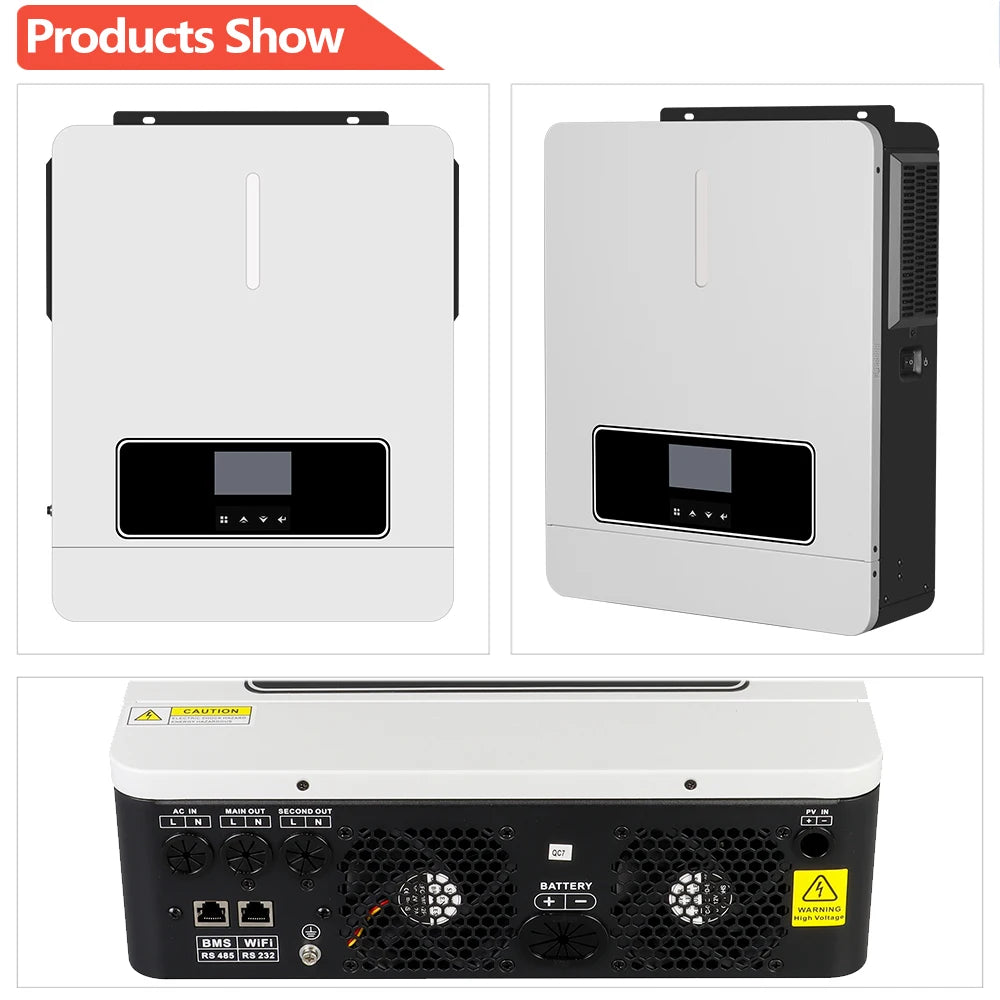

Product Overview:
